MultiBase G63

The “car stacker” among our premium parkers

1/2

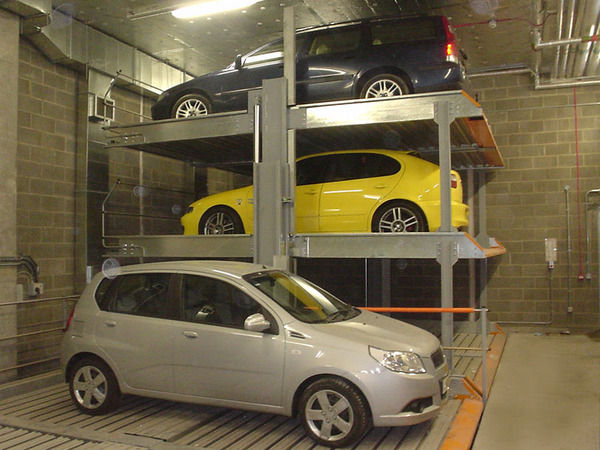

The multibase G63 triples the number of parking spaces with just one system.

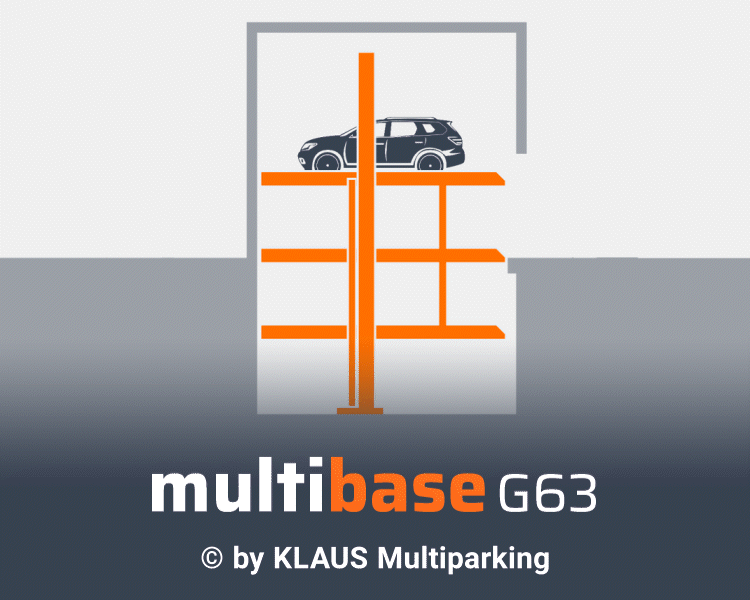

The MultiBase G63 triples the amount of parking space. This means that one system can have up to six parking spaces in a very confined space. All vehicles are parked horizontally and independently of each another.

Transform the MultiBase G63 into the parking system of your dreams with our carefully selected  accessories.

Specification

For independent parking

Single platform (SP) for 3 cars or double platform (DP) for 6 cars

Total height of standard type: 510 cm

Pit depth of standard type: 330/355 cm

Vehicle dimensions: height 150 cm up to 170 cm

Vehicle dimensions: length 500 cm up to 520 cm

Usable platform width (SP): 230 cm up to max 270 cm

Usable platform width (DP): 460 cm up to max 500 cm

Standard design: 2,000 kg per parking space

Optional design: 2,500 kg per parking space - (SP) only

Horizontal access to all parking levels

 Platform coating StandardGrip

 Platform coating optional AluLongLife or EasyWalk

Product variants :

1/3

Downloads

Field of Application

 In garages for family homes and apartment buildings

 In office buildings or residential and commercial buildings

 To increase capacity in underground car parks or

 To increase capacity in parking garages, e.g. of hotels

 Can also be used as an outdoor parking system without a garage, e.g. installation in an inner courtyard or a front garden
