MultiBase G63 Outdoor

The “car stacker” among our premium parkers, even outdoors

The MultiBase G63 Outdoor triples the number of parking spaces with just one system, even outdoors.

Selected Klaus double parkers® are also available as outdoor versions. The robust technology is also protected against the weather. You can save yourself the time-consuming and expensive work involved in constructing a garage, while still creating more parking spaces per parking location.

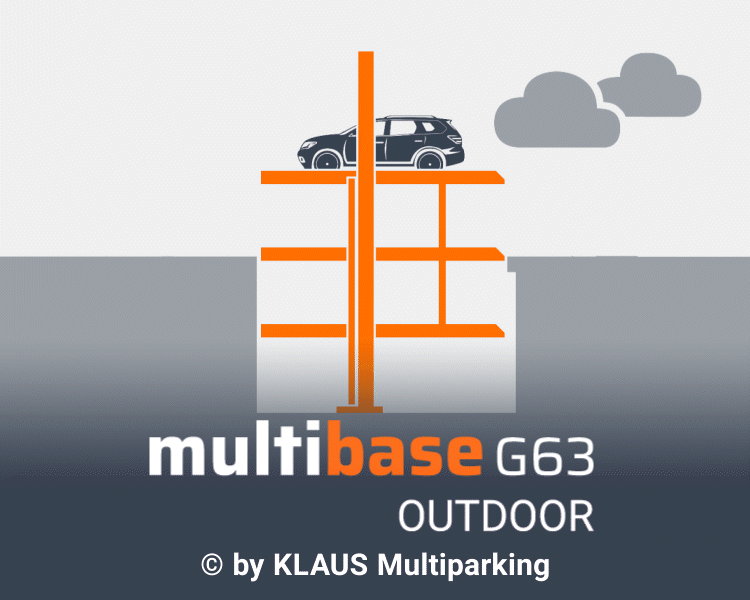

With the MultiBase G63 Outdoor you can even house three vehicles one on top of the other. On the three levels, you can therefore create six parking spaces in one single system with double platforms – and you only need the floor area of a double garage! All the vehicles are parked on horizontal platforms..

Transform the MultiBase G63 Outdoor into the parking system of your dreams with our carefully selected premium accessories.

Specification

For independent parking

Single platform (SP) for 3 cars or double platform (DP) for 6 cars

Total height of standard type: 510 cm

Pit depth of standard type: 330/355 cm

Vehicle dimensions: height 150 cm to 170 cm

Vehicle dimensions: length 500 cm to 520 cm

Usable platform width (EB): 230 cm up to max 270 cm

Usable platform width (DB): 460 cm up to max 500 cm

Standard design: 2,000 kg per parking space

Optional design: 2,500 kg per parking space - EB only

In case of snow loads this need to be taken into consideration

Horizontal access to all parking levels

 Platform coating StandardGrip

 Platform coating optional AluLongLife or EasyWalk

Product variants :

1/3

Downloads

Field of Application

 In the inner countryard of apartment buildings, offices, hotels

 Significant increase in the parking spaces over ordinary garages

 To increase capacity in parking garages, e.g. of hotels

 Also ideal for car dealerships or car rental companies
