TrendVario 6200+

The premium semi-automatic parking system without a pit that can be driven through

ROW 1

2 Levels

GF = Ground Floor

UF = Upper Floor

Grids = Variable

PLUS +

ROWS FROM OTHER TRENDVARIO SYSTEMS THAT CAN BE FLEXIBLY COMBINED BEHIND EACH

The TrendVario 6200+ can be combined with other TrendVario models

The TrendVario 6200+ can be driven through, which means it can be easily combined with the TrendVario 6100, 6200+ and 6300, as well as the 6100+ and 6300+ (which can also be driven through), as an additional row of parking. As no second access lane is required, this sort of combined parking system enables you to have even more parking spaces within the same floor area.

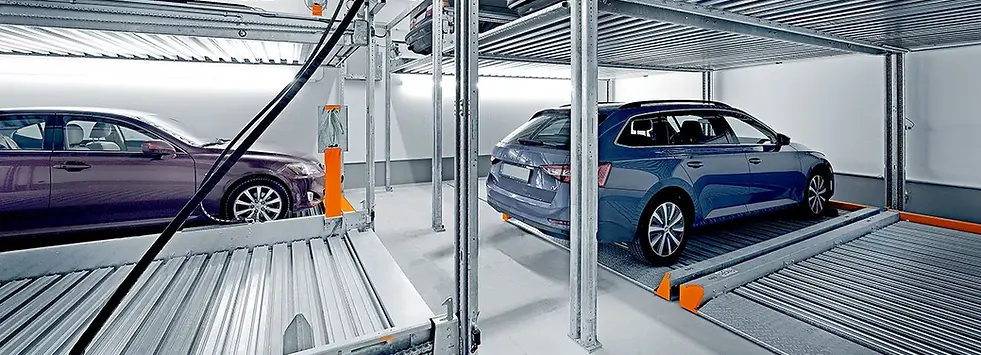

The TrendVario 6200+ accommodates two vehicles, one above the other. The parking spaces are moved vertically and horizontally and transported to the desired position.

For maximum operating safety, the access level is secured from the entire system by gates.

You can also enhance your TrendVario 6200+ with our premium accessories.

Specification

For independent parking

Can be combined with TrendVario 6100, 6100+, 6300, 6300+, 6200+

4 rows behind each other and 15 grids next to each other

up to 29 parking spaces are possible

Building height: 330 cm to 460 cm in 5 cm increments

Pit depth: not required

Vehicle dimensions: height 150 cm to 210 cm

Vehicle dimensions: length 500 cm to 520 cm

Usable platform width: 230 cm up to 270 cm

Standard design: 2,000 kg per parking space

Optional design: 2,600 kg per parking space

Special design: 3,000 kg per parking space

Horizontal access to all parking levels

 Platform coating StandardGrip

 Platform coating optional AluLongLife or EasyWalk

 Operation via SmartChip, SmartPortable or SmartApp

 Standard Gates : Vertical Gates

 Optional Gates : Sliding Gates

Product variants :

Downloads

Field of Application

 In residential and commercial buildings in large cities

 In office buildings or residential and commercial buildings

 In prefabricated garages

 To increase capacity in underground car parks or

 To increase capacity in parking garages, e.g. of hotels, car rentals

 To increase capacity for car dealerships or vintage car collectors

 Ideal in the case of constructions abutting property lines
