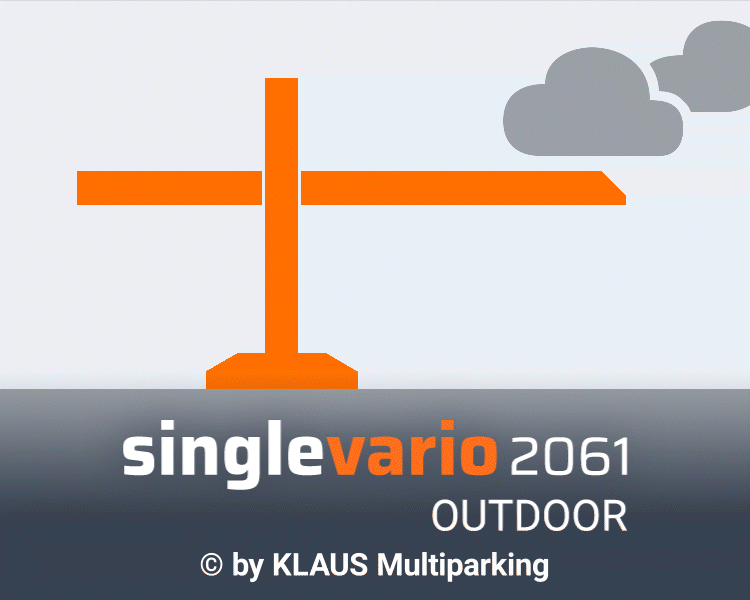

SingleVario 2061 Outdoor

The most flexible parker for retrofitting, even outdoors

SingleVario 2061 Outdoor – Double-decker garage made easy

Selected Klaus double parkers® are also available as outdoor versions. The robust technology is also protected against the weather. You can save yourself the time-consuming and expensive work involved in constructing a garage, while still creating more parking spaces per parking location.

The SingleVario 2061 Outdoor is the simple and inexpensive way to turn one parking space into two – right on top of one another. The premium parker is installed without a pit and is extremely flexible. It can be adapted to the space available and different vehicle heights, for example. The system is therefore particularly suitable for the modernisation of existing buildings as well.

As is usual for dependent parking, the lower parking space must be empty before the platform for the second car can be lowered. The system is therefore ideal for using the upper platform for the long-term parking of vintage cars or the like, for example, and the lower parking space for short-term parking.

Specification

For dependent parking

Single platform for 2 cars

Total height of standard type: 330 cm

Pit depth: no pit required

Vehicle dimensions: height 150 cm to 200 cm

Vehicle dimensions: length 500 cm to 520 cm

Distance between platforms can be adjusted even retrospectively

Usable platform width (EB): 230 cm, optional up to max 270 cm

Standard design: 2,000 kg for the upper parking space

Optional design: 2,600 kg for the upper parking space

No weight restriction for the lower parking space

In case of snow loads this need to be taken into consideration

Horizontal access to the parking level

Retrofitting possible, depending on local conditions

 Platform coating StandardGrip

 Platform coating optional AluLongLife or EasyWalk

Product variants :

1/6

Downloads

Field of Application

 In the inner countryard of apartment buildings, offices, hotels

 Significant increase in the parking spaces over ordinary garages

 To increase capacity in parking garages, e.g. of hotels

 Also ideal for car dealerships or car rental companies
