MultiBase 2072i Outdoor

The most comfortable premium parker, even for outdoors

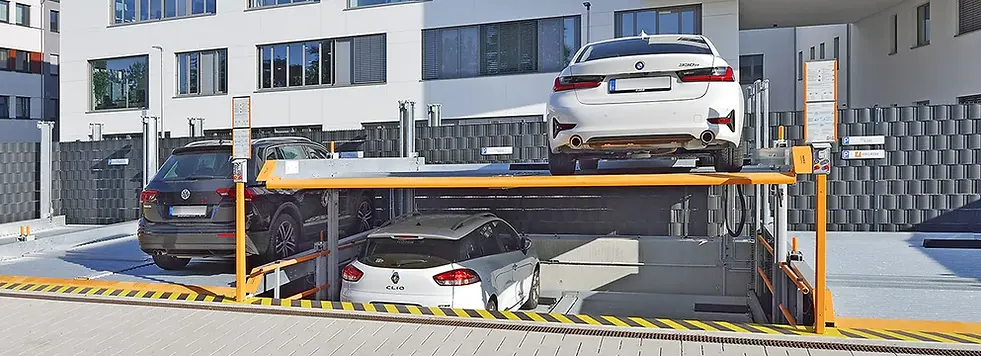

The MultiBase 2072i Outdoor has ample room for a comfortable entry and exit.

Selected Klaus double parkers® are also available as outdoor versions. The robust technology is also protected against the weather. You can save yourself the time-consuming and expensive work involved in constructing a garage, while still creating more parking spaces per parking location.

The MultiBase 2072i Outdoor is one of the most comfortable parking systems available, since the offset steel pillar allows car doors to be opened further, thus ensuring easy entry and exit. The system accommodates heavy vehicles in a space-saving manner and is perfect for storing vehicles with a height of up to 215 cm. Thanks to the electro-hydraulic synchronization control system, the MultiBase 2072i Outdoor is more environmentally-friendly, requires less maintenance and is generally more efficient than previous systems with a mechanical synchroniser.

You can also enhance your MultiBase 2072i Outdoor with our premium accessories.

Specification

For independent parking

Single platform (SP) for 2 cars or double platform (DP) for 4 cars

Total height of standard type: 335 cm

Pit depth of standard type: 180/185 cm

Vehicle dimensions: height 150 cm to 215 cm

Vehicle dimensions: length 500 cm to 520 cm

Usable platform width (SP): 230 cm up to max 270 cm

Usable platform width (DP): 460 cm up to max 540 cm

Standard design: 2,000 kg per parking space

Optional design: 2,600 kg per parking space

Special design: 3,000 kg per parking space - (SP)  only

In case of snow loads this need to be taken into consideration

Horizontal access to all parking levels

 Platform coating StandardGrip

 Platform coating optional AluLongLife or EasyWalk

Product variants :

1/11

Downloads

Field of Application

 In the inner countryard of apartment buildings, offices, hotels

 Significant increase in the parking spaces over ordinary garages

 To increase capacity in parking garages, e.g. of hotels

 Also ideal for car dealerships or car rental companies
